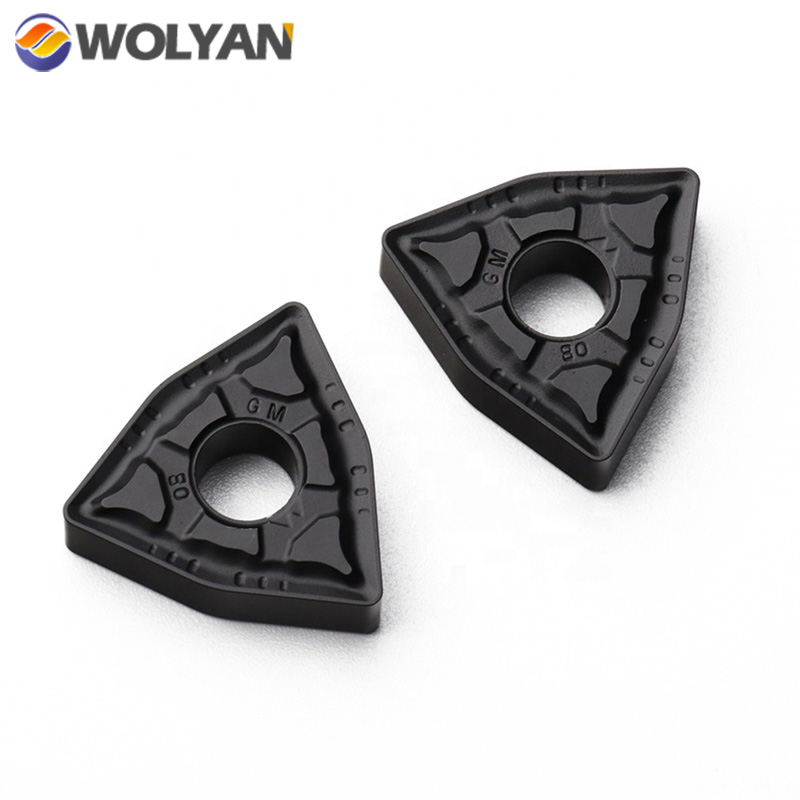

Cnc lathe insert WNMG080404/08/12 machining steel, stainless steel, cast iron
WNMG080404/08/12 turning insert is well applied to workpiece steel, stainless steel, cast iron and it can work mild or high hardness workpiece HRC30-45, beside, it be alternative of finishing, semi-finishing, rough machining.
Coating color: Yellow, Blackish.
Standard size specification
CVD Coating
Hardness HRC30-45,
Application Scope- Steel, Stainless steel
Steel P20-40,
Stainless steel M20-M40,
Cast Iron: K10-25

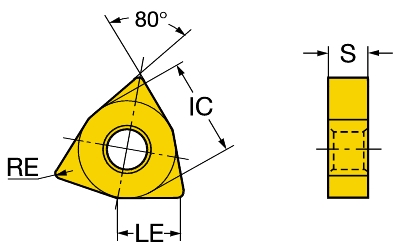

ISO Items |
Dimensions(mm) |
Grade |
Cutting parameters |
l |
ic |
s |
Φd |
re |
CVD |
PVD |
WNMG080404-PM |
8.7 |
12.7 |
4.76 |
5.16 |
0.4 |
√ |
|
ap:0.15-2.00mm
fn:0.08-0.18mm/rev |
WNMG080408-PM |
8.7 |
12.7 |
4.76 |
5.16 |
0.8 |
√ |
|
ap:0.25-2.00mm
fn:0.08-0.25mm/rev |
WNMG080412-PM |
8.7 |
12.7 |
4.76 |
5.16 |
1.2 |
√ |
|
ap:0.25-2.00mm
fn:0.08-0.25mm/rev |
